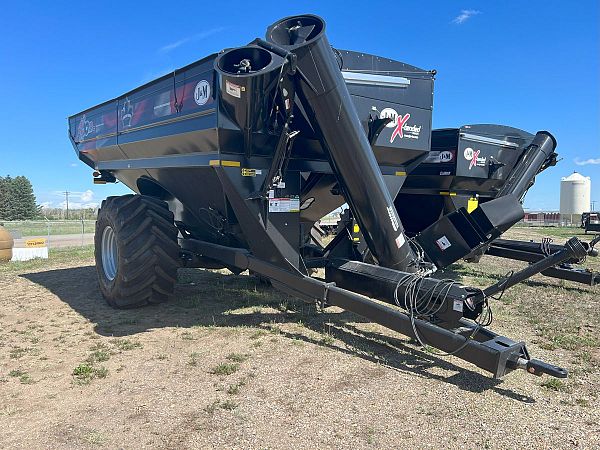

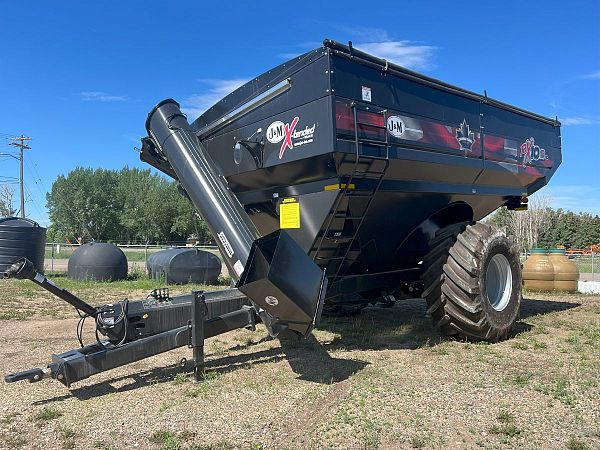

J&M 1012-20S X-Tended Right Side Unload Black Grain Cart


The brand-new J&M Right-Side Grain Cart is now available to order at your nearest Flaman location. Featuring the same great qualities as the 12 series X-tended reach models, the right-side auger design further increases operator visibility and unloading efficiency.

New Bullet Auger: The new 20” bullet auger unloads 600+ bushels per minute, the same rate as a larger 22” auger.

In-Line Auger Design: The grain is not re-directed, ensuring efficiency and better transfer.

100% Visibility: Provides complete visibility of the upper auger during unloading and during the folding sequence.

Telescoping Flow Control Spout: Extends in the outward position to maximize side reach and retracts when unloading in the downward position to maximize unloading height.

Excellent Clean-Out: Allows for unrestricted grain flow and prevents bridging in high moisture.

Bolt-On Tank Design: Allows tank to extend toward the combine auger.

J&M iFarm Plus: A wireless weighing system with moisture sensor option.

SPECS:

• 1,025 Bushels
• Right Side Unload
• 30x32 Wheels, 10 Hole
• 10 bolt hubs
• Spindles (2): 4.5" Diameter

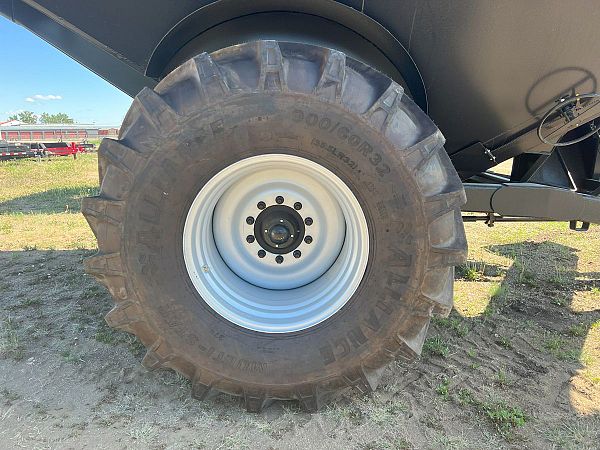

• 900/60R32 Lug Tires
• 20" Bullet Auger
• Up to 600 Bu/Min
• Safety Chain
• Michels Roll Tarp
• Total Weight (approx.): 12,900 lbs
• Tounge Weight Loaded: 4,200 lbs
• Green "Patriotic" Edition
• *Scale (5 Point System) with iFarm

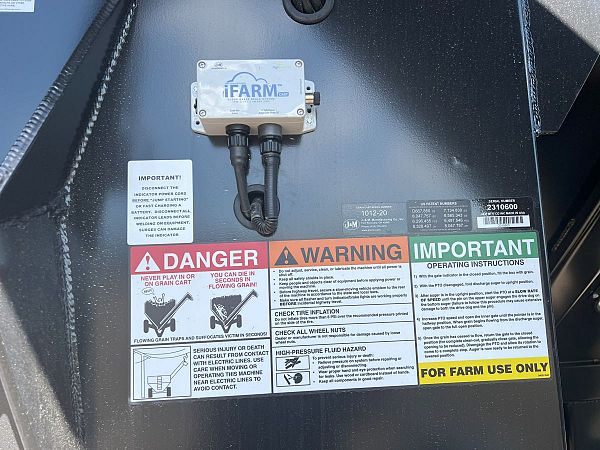

*J&M iFarm Plus by Agrimatics™J&M iFarm Plus by Agrimatics™ is the leading edge of agricultural weighing systems:

• The patent pending system can connect wirelessly to any compatible in-range mobile device providing world-class indicator displays to the entire team. iFarm Plus is simple to install with a long-lasting battery to easily get you through the harvest or planting season. Our rugged design can handle extreme temperatures, vibrations, mud, sun, rain and snow.
• Uses your mobile device as an advanced scale indicator and harvest data manager
• App based software with free updates
• Multiple users
• Moisture sensor option
• Auto gate option *Must purchase optional solenoid package (IFM-GS-1P)
• Cloud based storage option
• Powered from tractor with battery back-up

Delivery options are available, ask your salesperson for details.
Finance and lease options available OAC.
