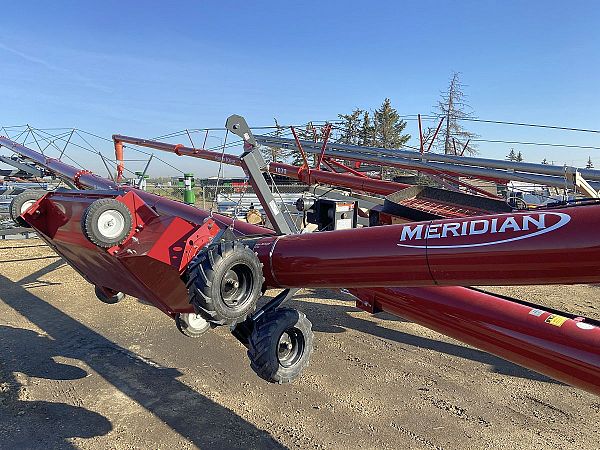

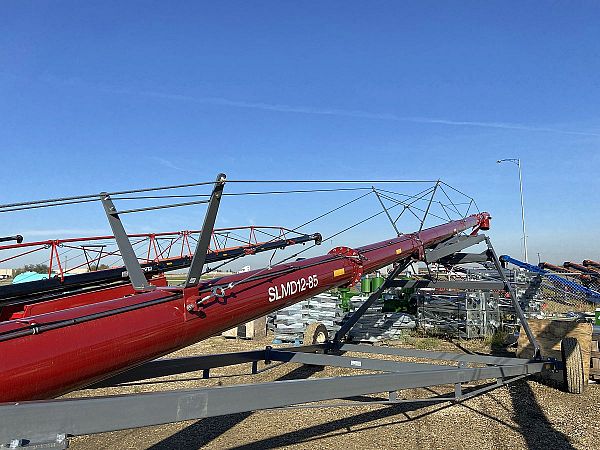

Meridian SLMD 12" x 85' Heavy Duty Swing Auger

Meridian’s heavy-duty Swing Augers are rugged and versatile, accommodating any farm or milling grain management.  Our frame design allows for better weight distribution, easy maneuverability as well as stability when operating the auger in the raised position.  Our goal is to equip the farm operation for optimum efficiency and performance as well as safety.  Meridian products are designed using high quality parts and industry-leading manufacturing techniques, improving farm and time productivity, particularly during the busiest seeding and harvest seasons.

Meridian’s scissor lift mechanical drive grain auger is powder coated for a durable long-lasting finish.  The reversing kit comes standard with our Meridian Swing Auger.  The hopper lift can accommodate any operating situation by placing the hopper on the left or right side of the main tube.

Features:

• Continuous Super Edge Flighting
• Unique 540 spline and hub connection for flight assembly
• Reverse scissor, for better transport stability
• Original patented holder of left and right flighting drive in feed hopper
• Reversing kit standard
• Torsion bar assembly to stop head end sway when positioning auger to bin
• Premium powder coat finish on augers and components

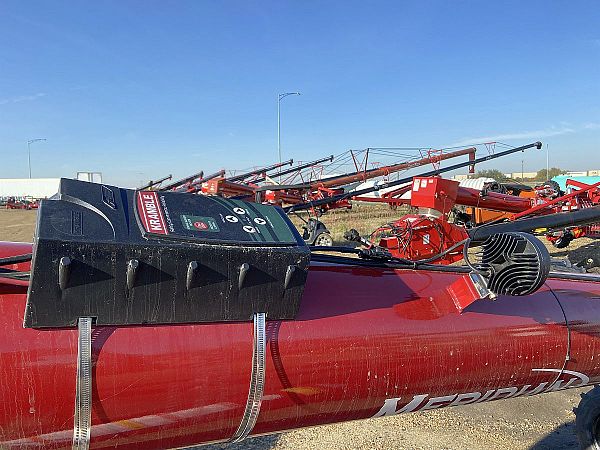

• Kramble 12V remote controlled swing hopper mover
• Hydraulic Winch
• LED Light Kit
• Poly Flex Downspout
• 100 – 120 HP Tractor required
• Up to 9,000 Bushels per hour

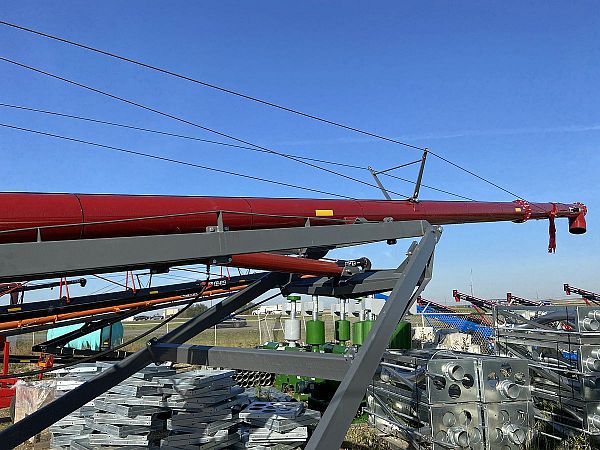

• Heavy-duty cable truss system
• Hydraulic worm gear winch located at the hopper lift arm
• Heavy-duty gearboxes
• Head-end features a heavy-duty dual thrust bearing
• Patented product overflow doors located at the discharge end of the auger - prevents auger plugging when the bin is full
• Powder coat finish

• Raised Height Reach: 53’ 7’’
• Auger Tube: 12” OD x 12 Gauge
• 540 PTO
• 16” c/w Tapered Roller Bearings

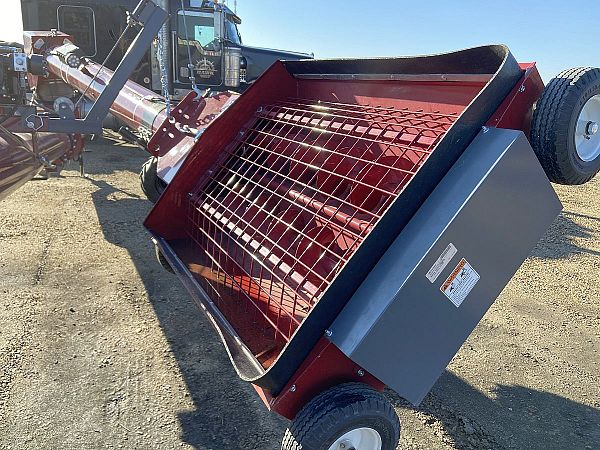

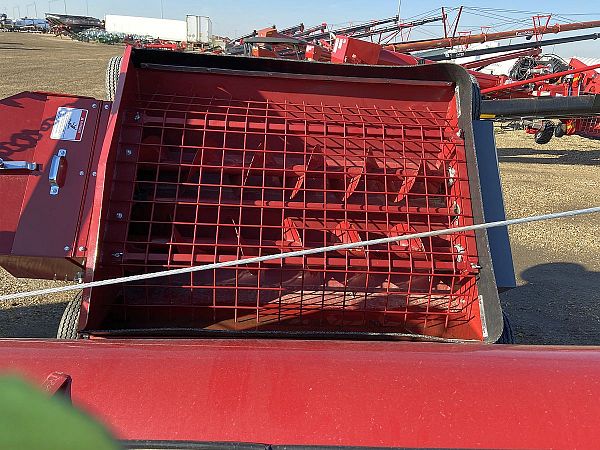

• Hopper Dimensions: 41 ½” W x 52” L x 13” with patened reverse flighting
• Auger Weight: 6462lb | 2931kg
• Auger Hitch Weight: 1440lb | 655kg
